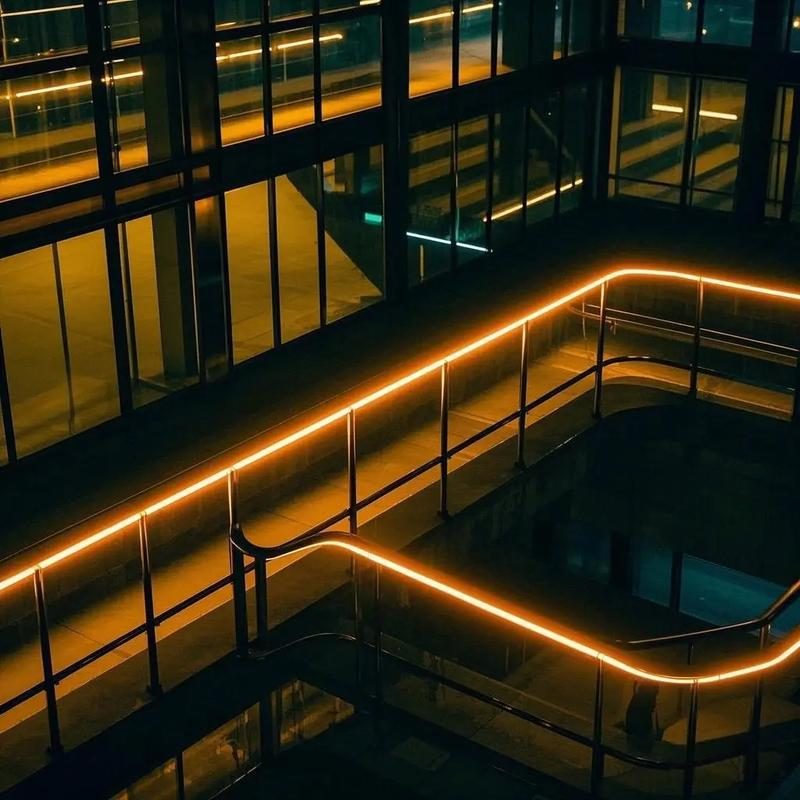

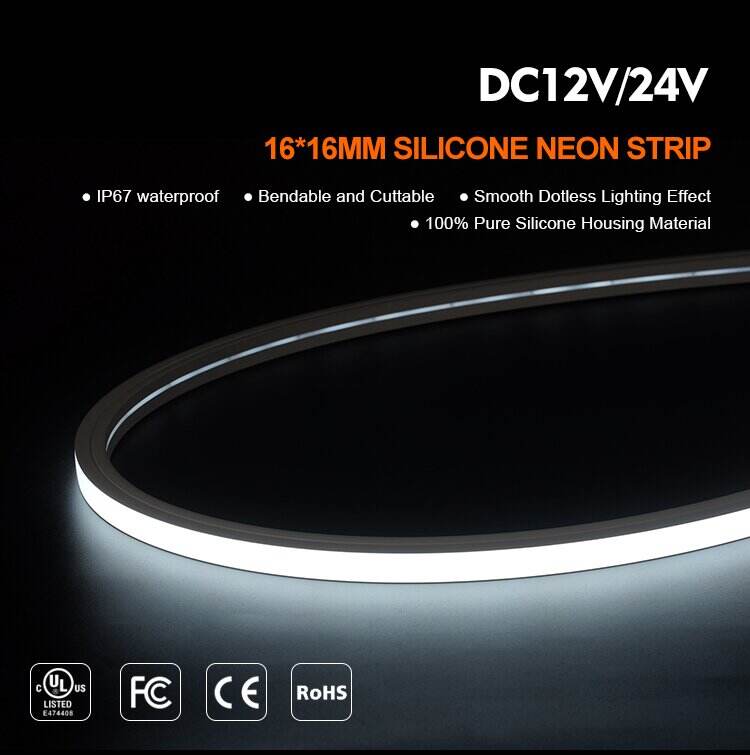

LED Silicone Sleeves, designed to meet the diverse needs of different customers! Currently used with LED SMD flexible strip
light, they are referred to as Neon Light and widely applied in the light box, advertising, and home decoration.
Crafted from food-grade silicone raw materials, the characteristics: High transparency, excellent sealing performance,
waterproofness, good flexibility, oil resistance, ozone resistance, and high-temperature resistance.
Model NO |
LM2835-WH120-24V-10MM-16*16MM |
LED Type |
SMD2835 |
Voltage(V) |
DC24V |
LED Qty/m |
120LED/M |
PCB Width |
10MM |
Rated Power(W) |
14W/M |
Silicone Neon Tube Size |
16*16MM, With wings |
Cutting Unit |
50MM (6LEDs/cutting) |
IP Rate |
IP20/65 |
LED Chip Brand |
SANAN, EPISTAR, LUMILEDS, SAMSUNG |
LEDs Material |
Double high thick 99.99% Gold Wire, Copper holder |
LEDs Supplier |
HONGLITRONIC, LUMILEDS, SAMSUNG |
CRI(RA>) |
80+, 90+, 95+, 98 |
Color Temperature |
2200K-7000K, Red, Blue, Green, Yellow, Pink, Orange |
Package(m/roll) |
5M or Customized |
Certificate |
UL, CE, FCC, ROHS, UKCA , CB, ISO9001 |
Warranty |
3~5 Years |
| Attribute | Details |
|---|---|
| Product name | Flex Silicone neon tube |
| Item Number | LWTG1616-5 |
| Length | 1m~100m (Cuttable) |

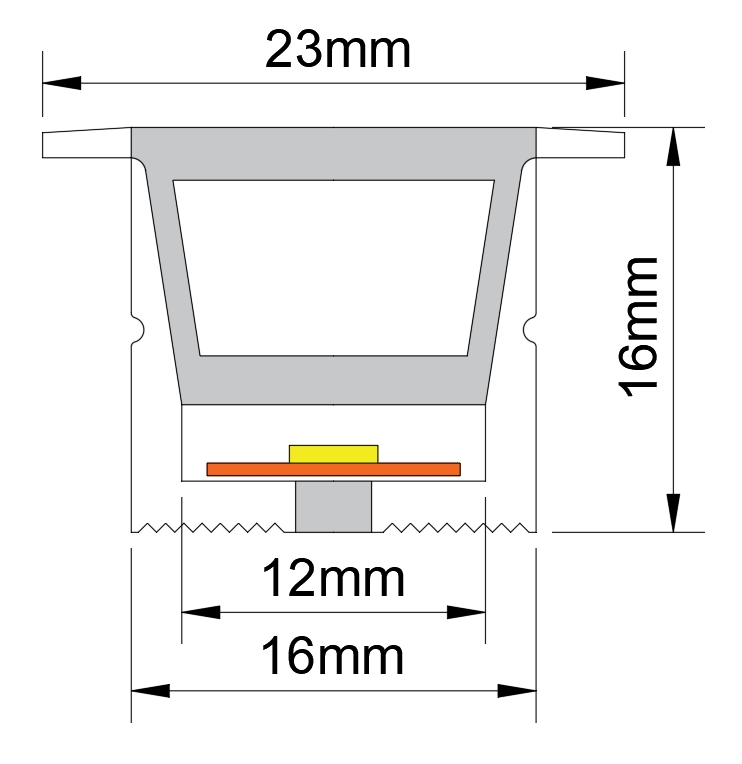

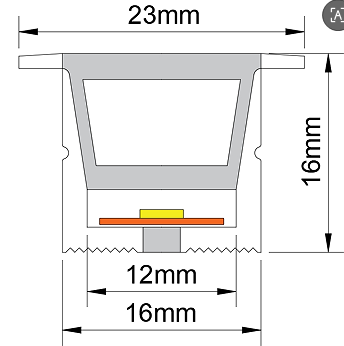

| Size | 16*16mm |
| Lighting Direction | Top view with wings, recessed |
| Material | Silicone |
| PCB width | 10mm |
| IP Rating | IP20/65 |
| Beam angle | 120° |

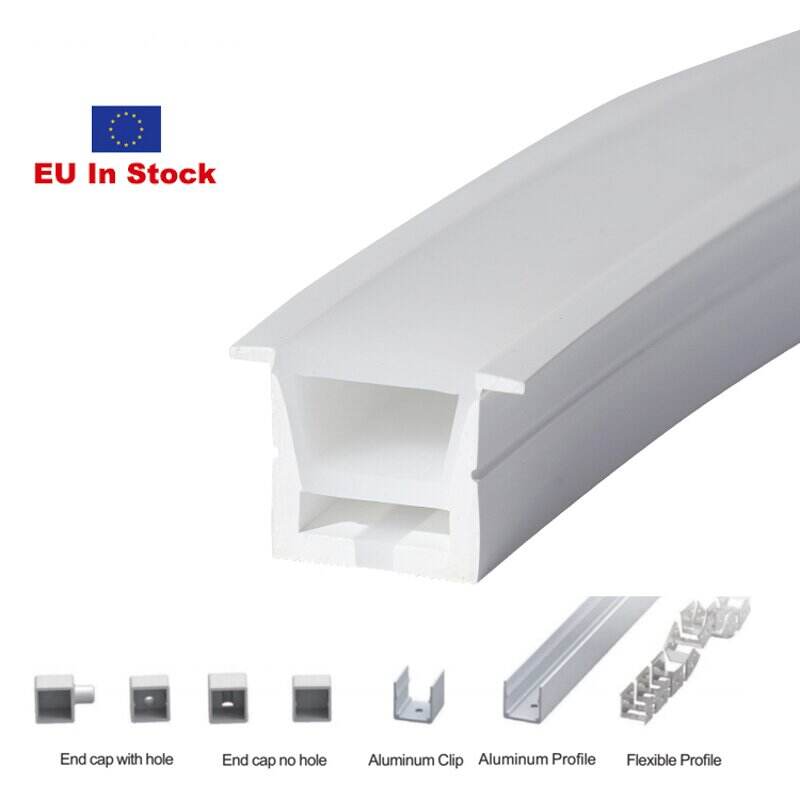

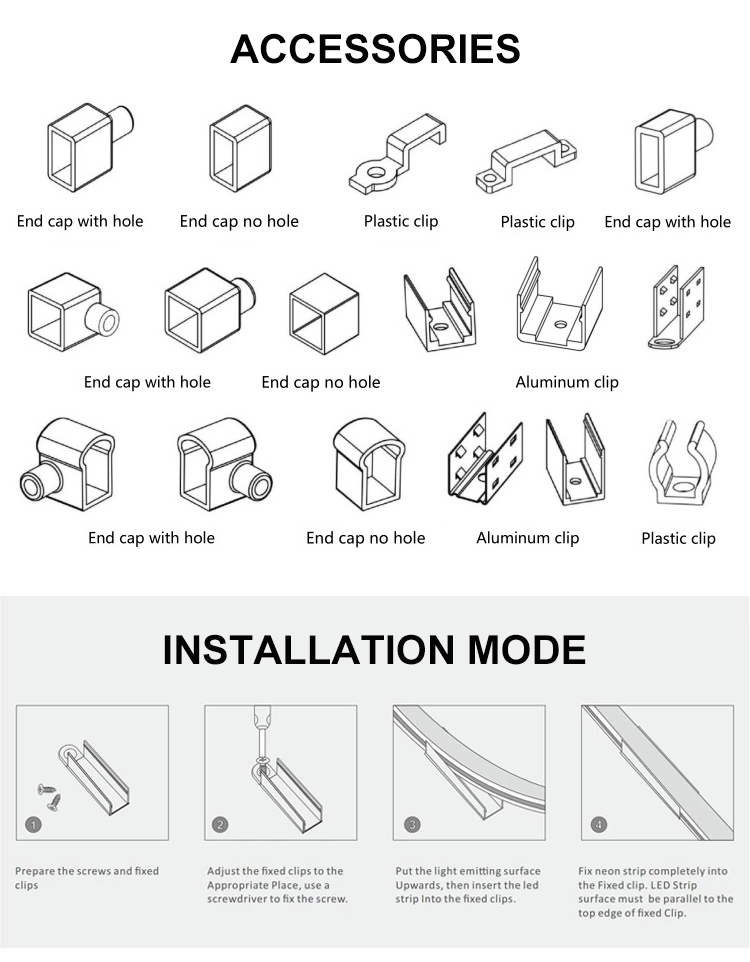

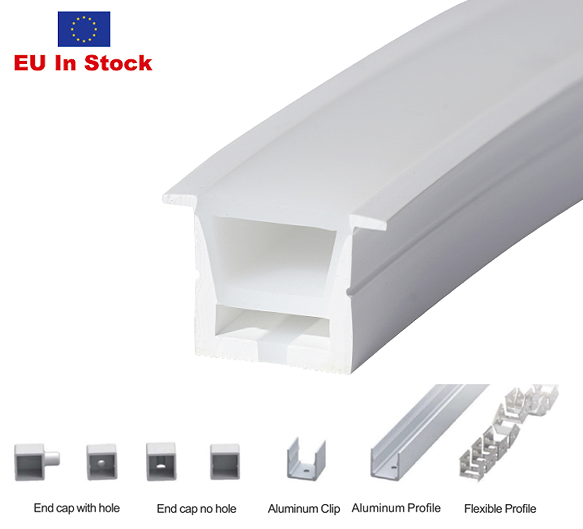

| Accessories | End cap with hole, End cap no hole, Clips, profile |

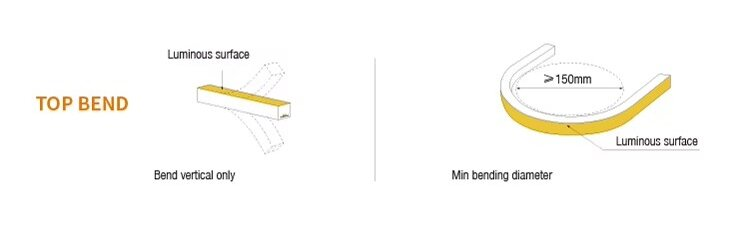

Durability & Flexibility – Made from high-quality silicone, they are highly flexible, bendable, and resistant to cracking or breaking
under stress.
Customizable & Aesthetic – Available in various colors, lengths, and shapes (e.g., round, flat), allowing for creative designs in
signage and decoration.
Easy Installation & Maintenance – Lightweight, bendable, and often comes with adhesive backing or mounting clips for hassle-
free setup.
IP-rated Protection – Many models are waterproof (IP65/IP67), suitable for wet environments like pools or outdoor displays.
Safety & Non-Toxicity – Silicone is recyclable and non-toxic, flame-retardant, and emits no harmful substances, making it safe for
indoor and outdoor use.
