Model NO |
LM2835-WN240-24V-16MM Double Rows |

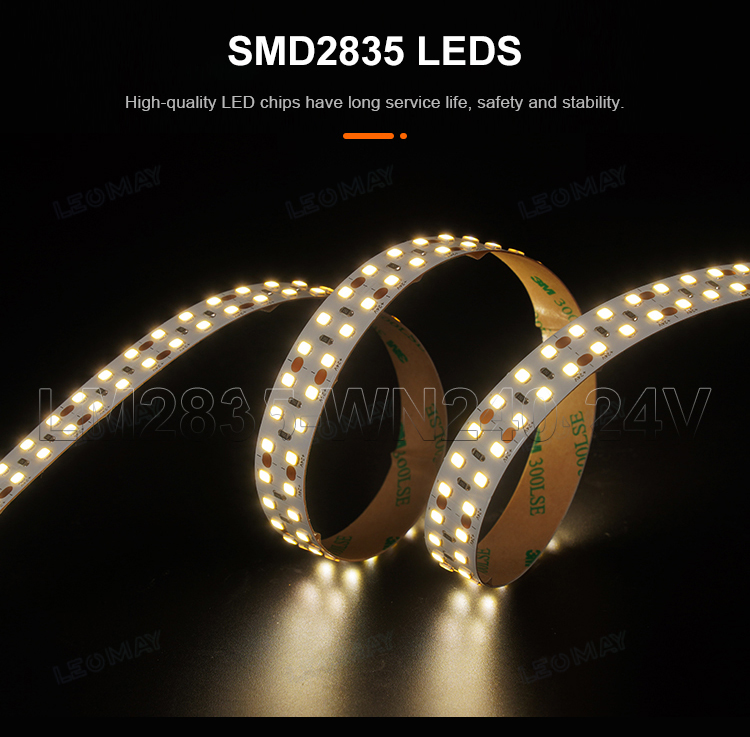

LED Type |
SMD2835 |
Voltage(V) |
DC24V |
LED Qty/m |
240LED/M |
PCB Width |
16MM |
Rated Power(W) |
24W/M |
Luminous Flux |
Ra80: 2700K(2353LM/M), 3000K(2400LM/M), 4000K(2520LM/M), 6000K(2590LM/M) |

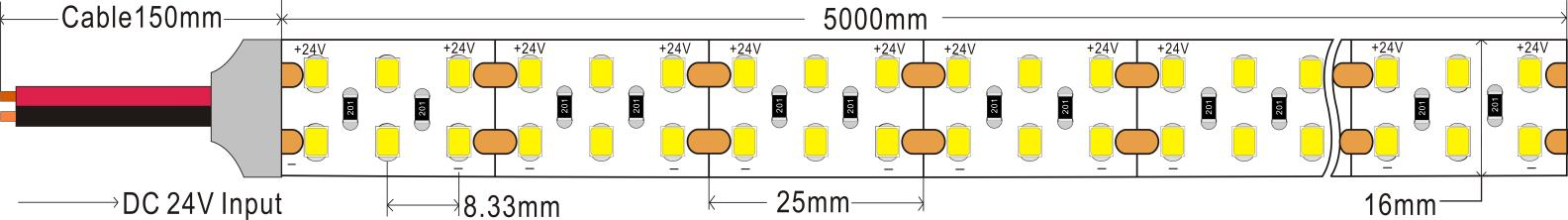

Cutting Unit |
25MM (6LEDs/cutting) |

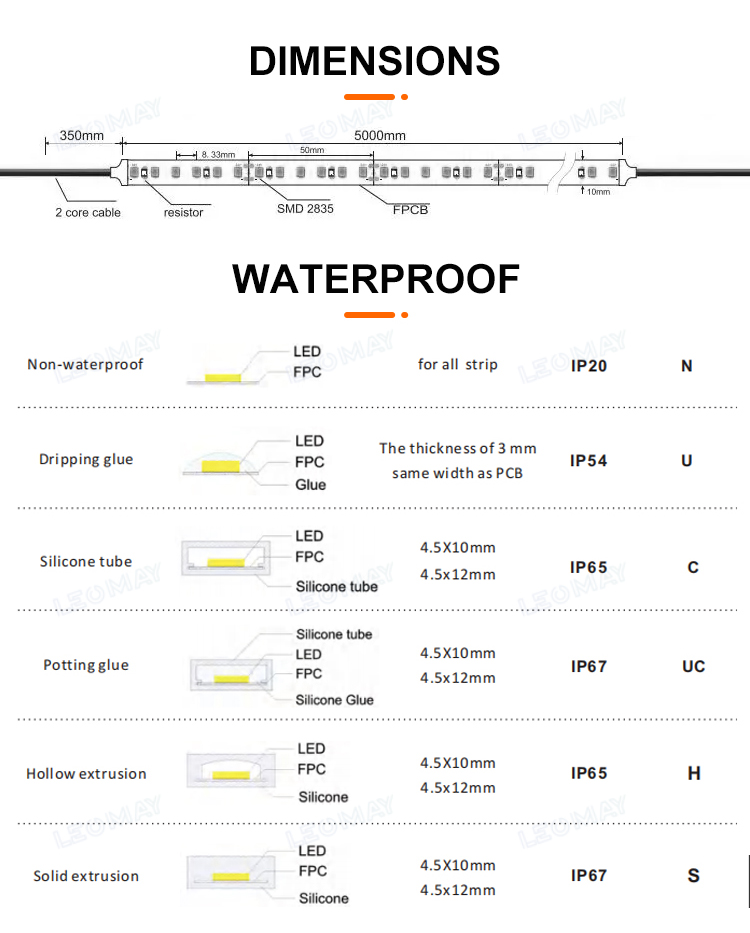

IP Rate |
IP20/IP54/IP65/IP67/IP68 |
LED Chip Brand |
SANAN, EPISTAR, LUMILEDS, SAMSUNG |
LEDs Material |
Double high thick 99.99% Gold Wire, Copper holder |
LEDs Supplier |
HONGLITRONIC, LUMILEDS, SAMSUNG |

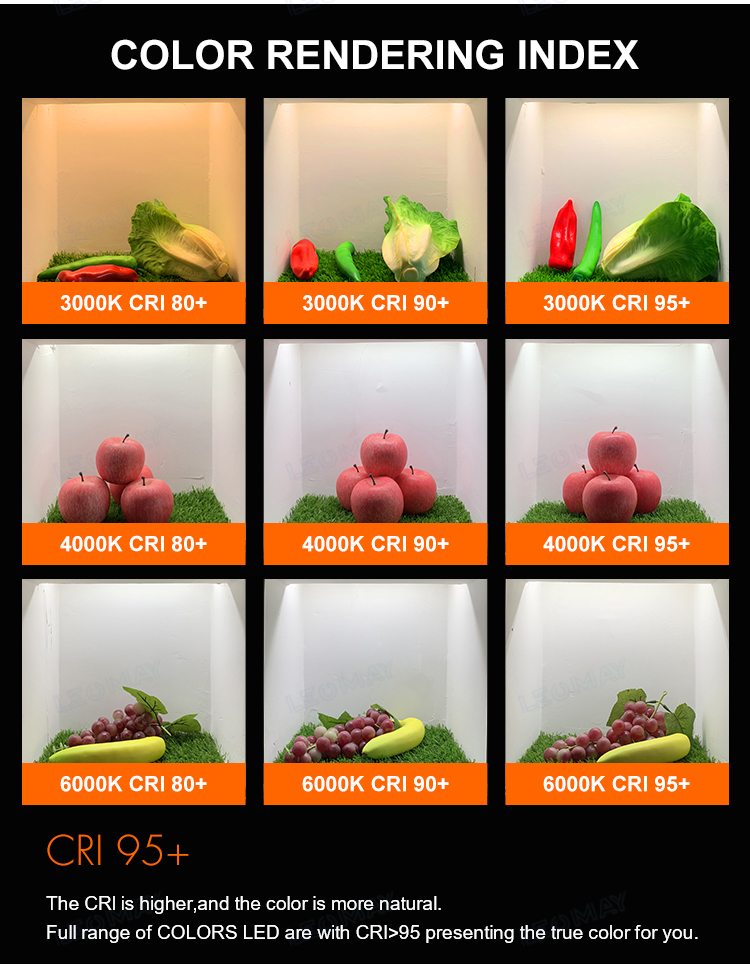

CRI(RA>) |
80+, 90+, 95+, 98 |
Color Tempertature |
2200K~7000K |
Package(m/roll) |
5M, 10M, 25M, 50M |
Certificate |
UL, CE, FCC, ROHS, UKCA , CB, ISO9001 |
Warranty |
5 Years |

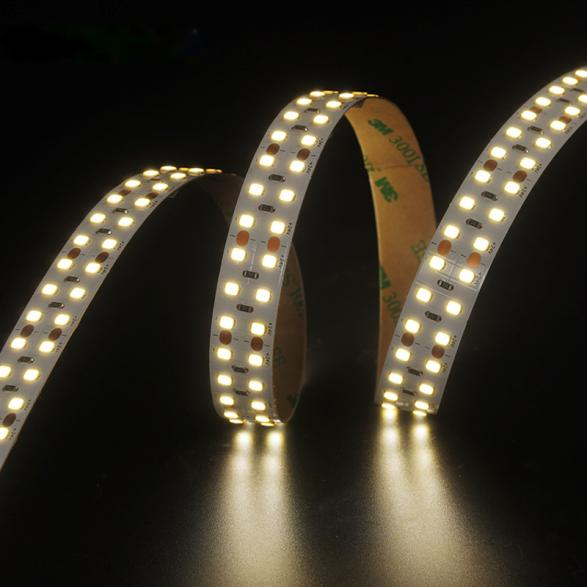

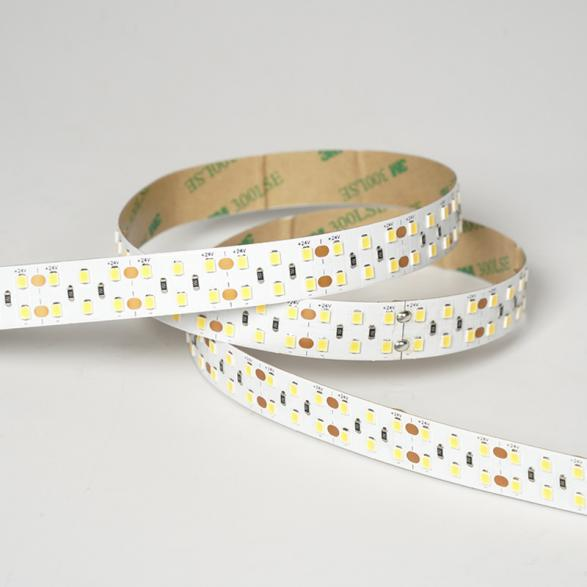

Product name |

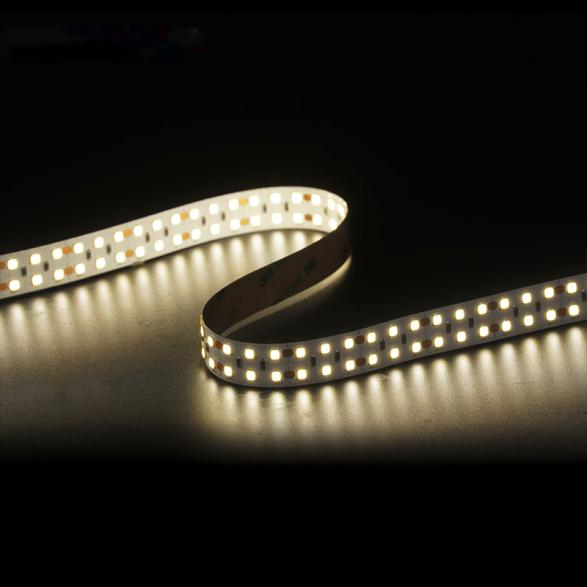

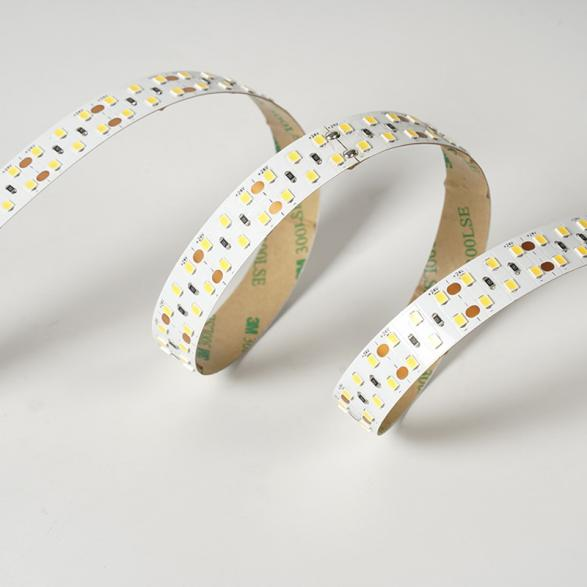

Flex LED strip |
Item Number |
LM2835-WN240-24V-16MM Double Rows |
Power |
24W/M |
Voltage |
24V |
LED quantity |
1200（240 chip/m) |
Cutting unit |
6 chips(every 2.5cm) |
Length |
5m |
PCB width |
16mm |

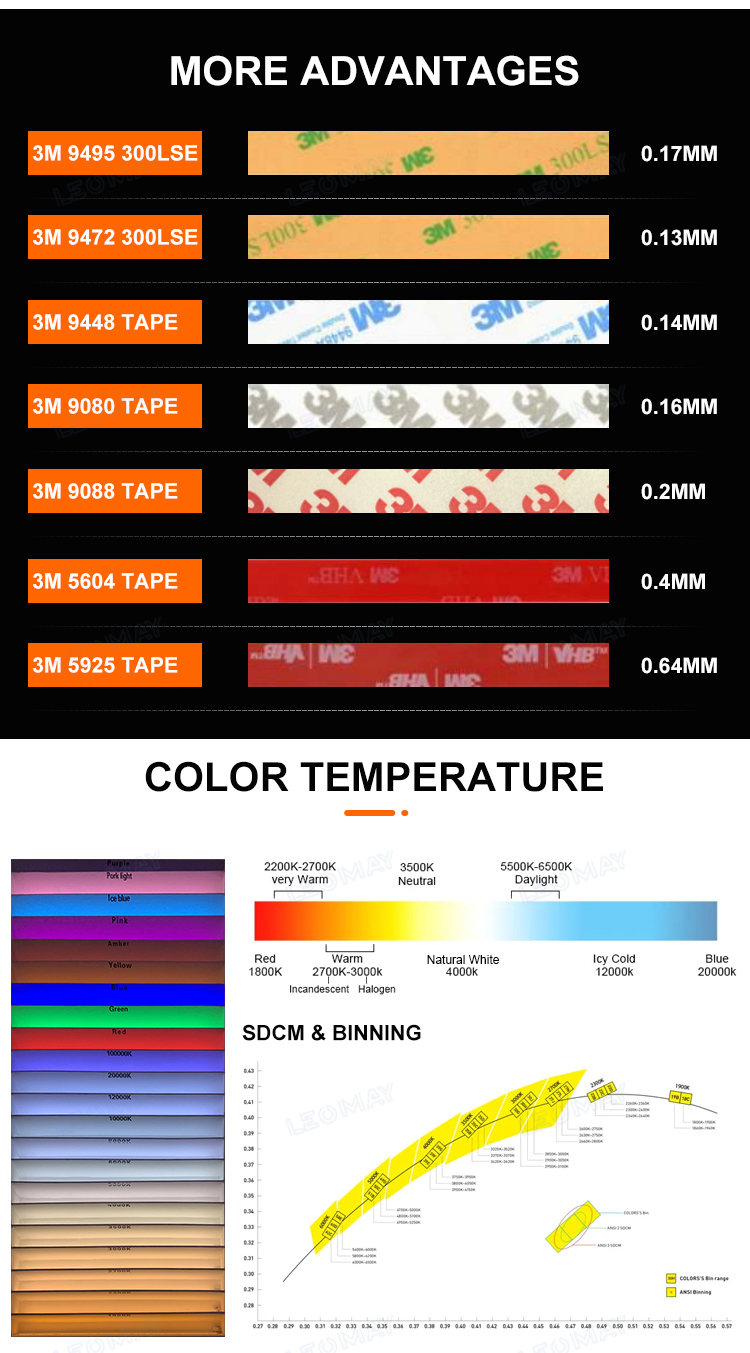

Adhesive type |
3M 9495LE |
Operating temperature |
-10°C ~ +45°C |
FAQ:
Q1:How can you guarantee quality?
A:There are professional QC in our factory who will inspect production lines and works all the day, in addition, there is aging
test for each product, the defected products will be quited once tested.
Q2:How about the shipping ?
A:Shipping by sea, by air, by local logistics are all supported.

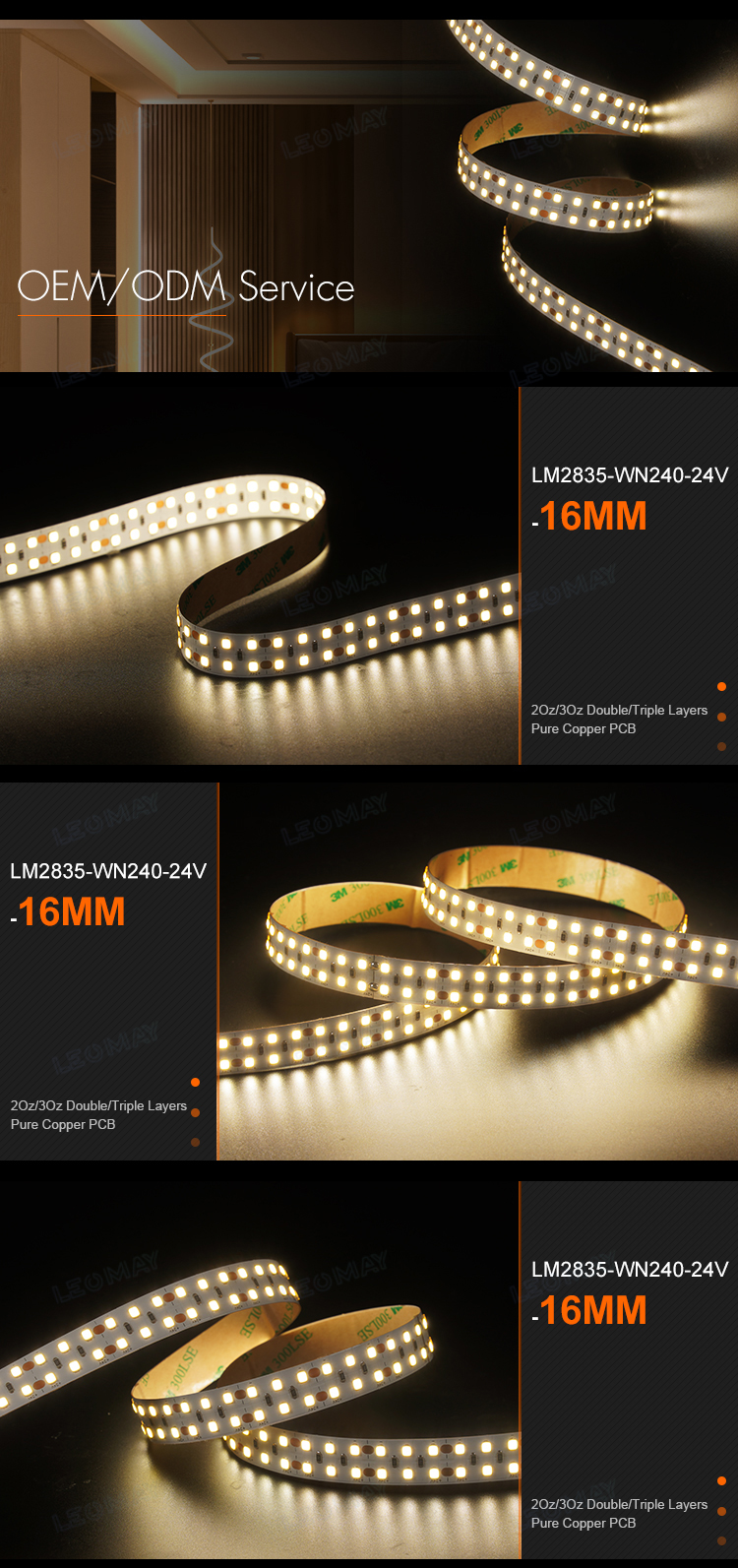

Q3:Do you accept OEM/ODM order?
A:Of course, we have abundant experience in OEM & ODM service.
Q4:What can I buy from you?

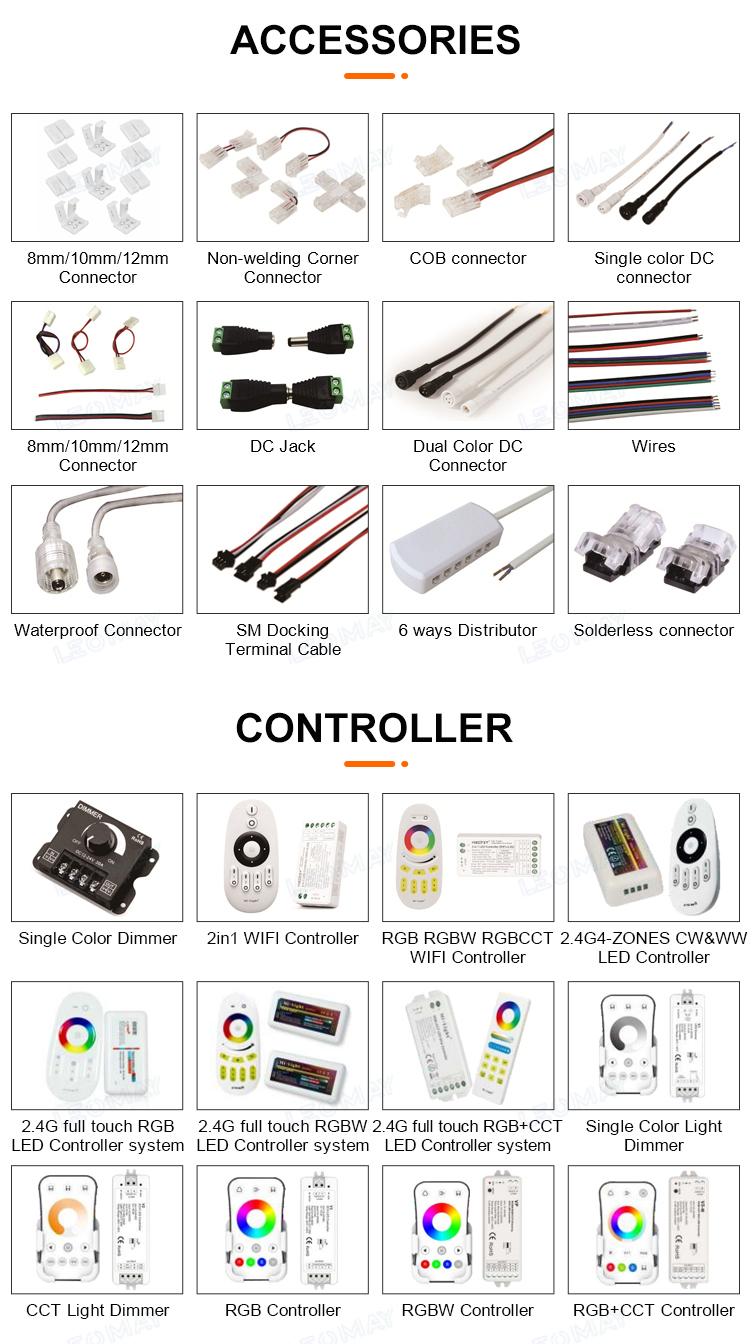

A: We offer a one-stop purchasing service. Apart from the light strips, we also provide related accessories, such as LED aluminum profiles, led controllers, power supplies and connectors, etc.
Q5. How to proceed an order for led strip light?
A:Firstly, let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly, customer confirms the samples and places deposit for formal order. Fourthly, We arrange the production once the payment received. Finally, once finish production, we will arrange shipment and send the track Number with no delay.
Q6:What kind of company is Lightwolf?
A:Lightwolf is a manufacturers that focus on Led strips, aluminum profile and neon light.
Q7: Why should I buy from you instead of other suppliers?
A: Lightwolf is a high-tech company focusing on the LED industry, including SMD strip lights, COB strip lights, LED aluminum profile,etc. We already had CE, RoHS UL FCC etc certificates.
Q8:How about R&D ability of your company?
A:We're able to provide customers with professional R&D service from design, molding, production, etc.
