Model NO |
LM2835-WN180-24V-10MM |

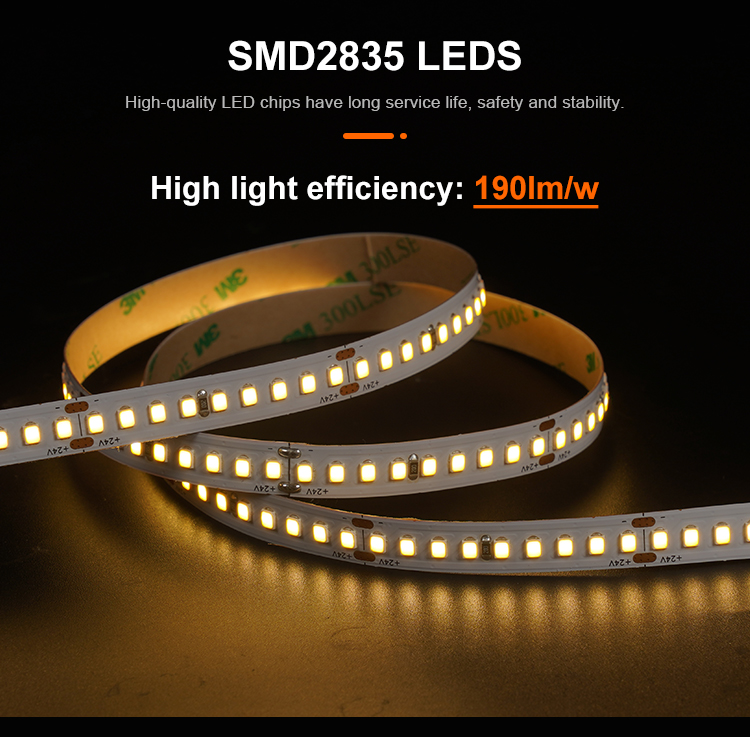

LED Type |
SMD2835 |
Voltage(V) |
DC24V |
LED Qty/m |
180LED/M |
PCB Width |
10MM |
Rated Power(W) |
14W/M(Customized power available) |
Luminous Flux |
2700K(RA80) 2632Lm/m, 3000K(RA80) 2660Lm/m 4000K(RA80) 2730Lm/m, 6000K(RA80) 2800Lm/m |

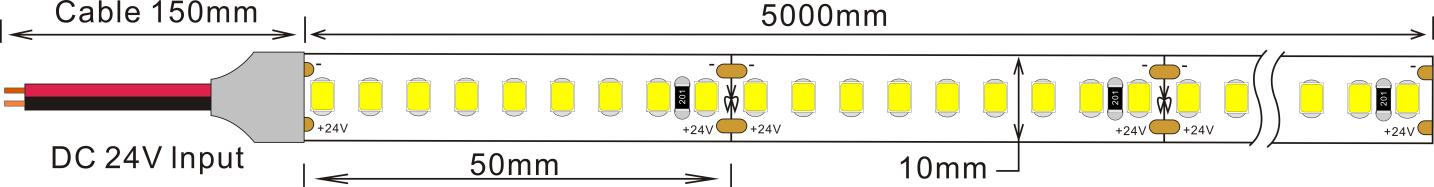

Cutting Unit |
50MM (9LEDs/cutting) |

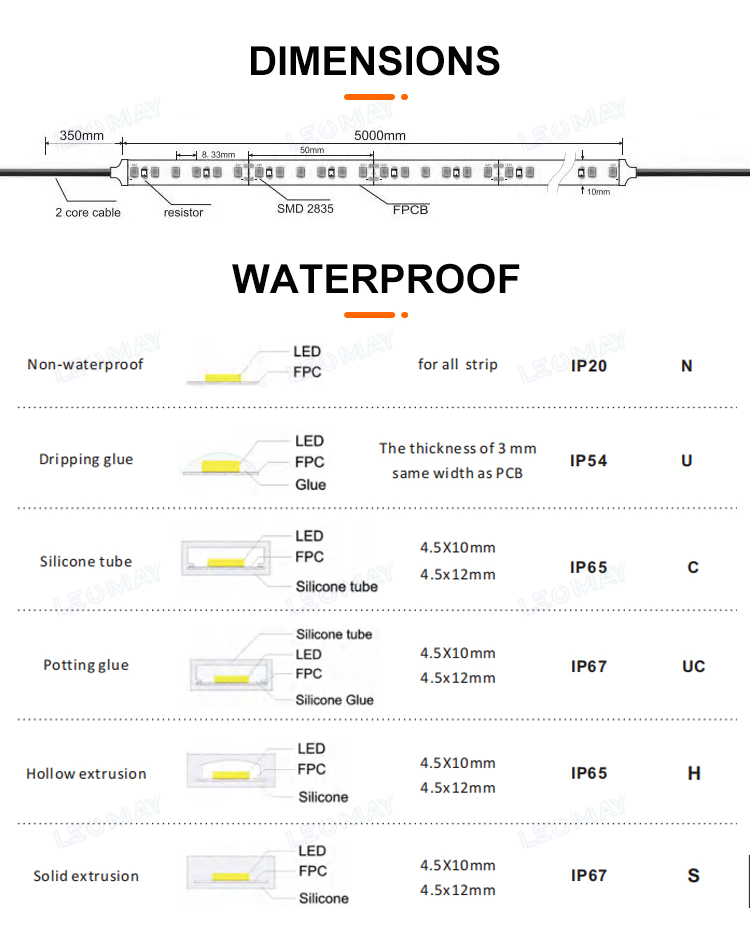

IP Rate |
IP20/IP54/IP65 |

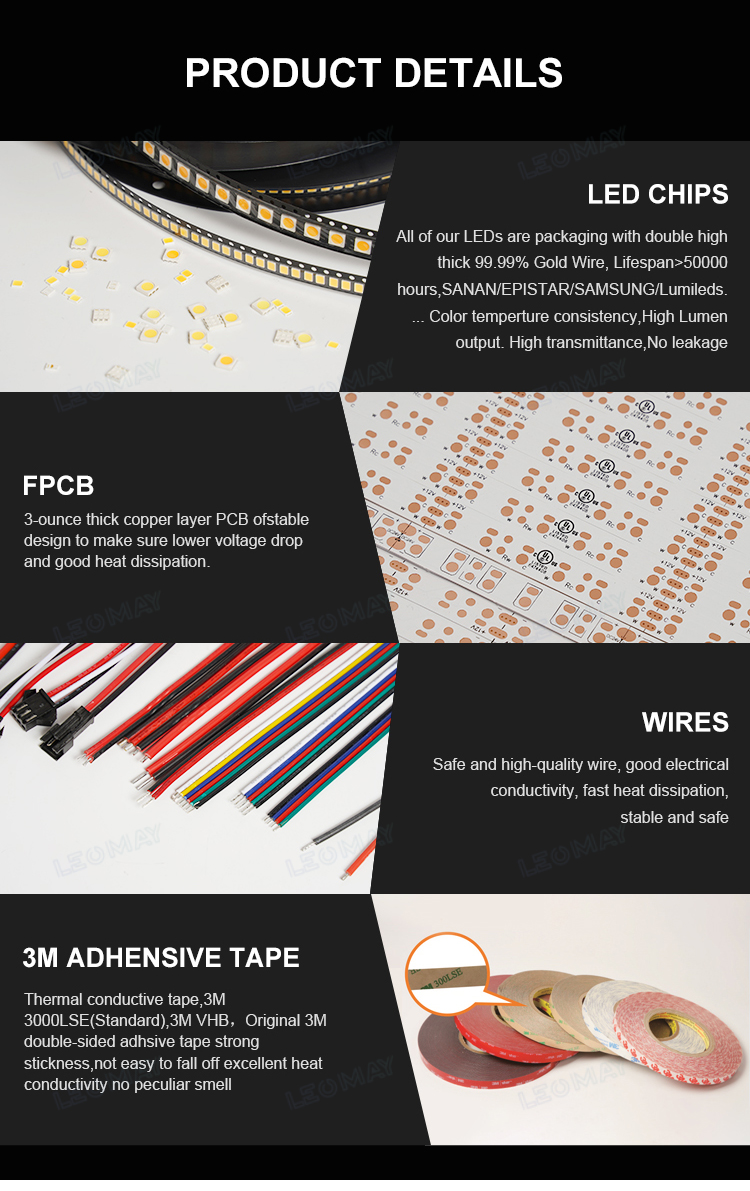

LED Chip Brand |
SANAN, EPISTAR, LUMILEDS, SAMSUNG |

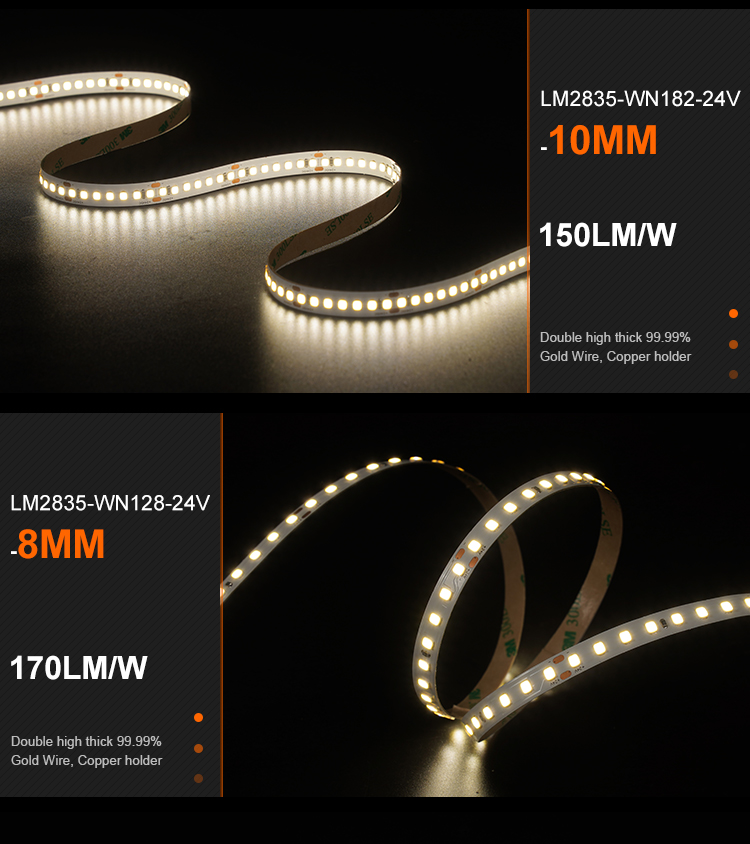

LEDs Material |
Double high thick 99.99% Gold Wire, Copper holder |
LEDs Supplier |
HONGLITRONIC, LUMILEDS, SAMSUNG |
CRI(RA>) |
80+, 90+ |
Color Tempertature |
2200K~7000K,Red, Blue, Green, Yellow, Pink, Orange |
Package(m/roll) |
5M, 10M, 25M, 50M |
Certificate |
UL, CE, FCC, ROHS, UKCA , CB, ISO9001 |
Warranty |
3~5 Years |

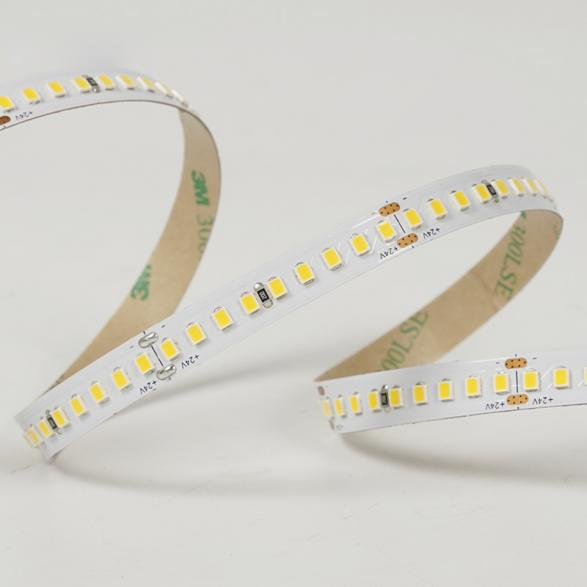

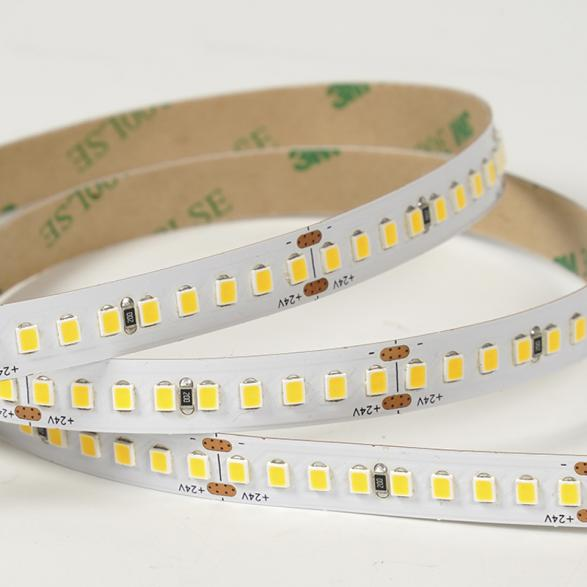

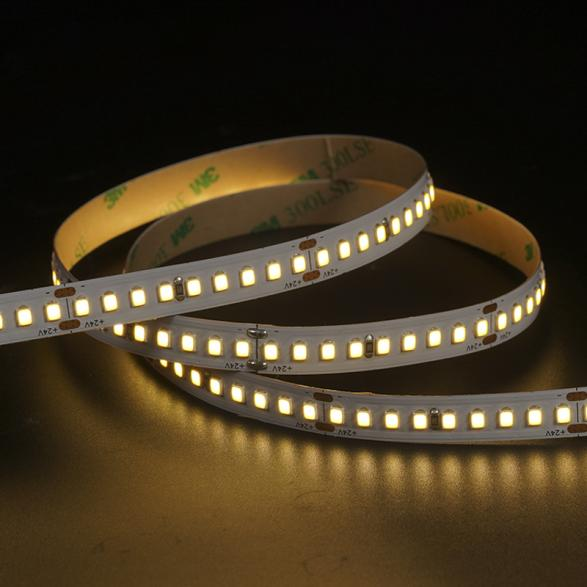

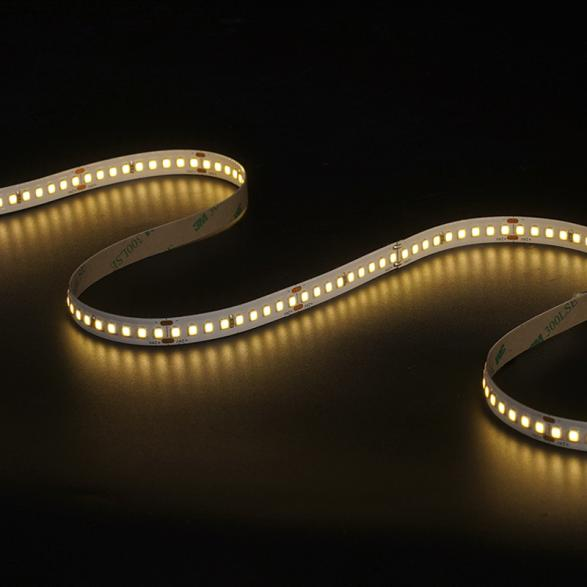

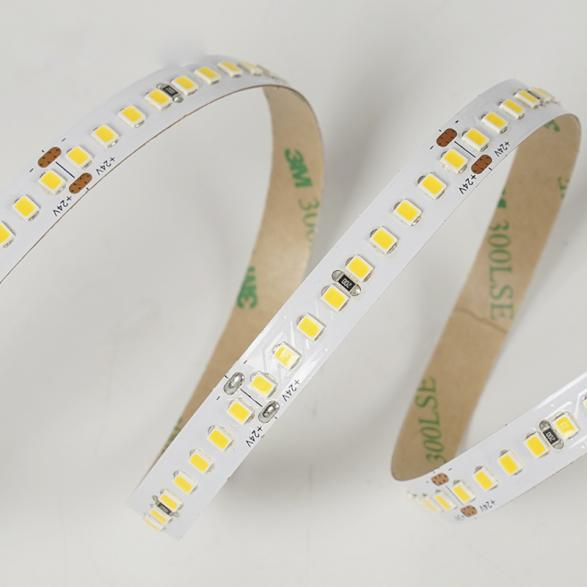

Product Name |
Flex LED strip |
Item Number |
LM2835-WN180-24V-10MM |
Power |
14W/M |
Voltage |
24V |
LED Quantity |
900（180 chip/m) |
Cutting Unit |
9 chips(every 5cm) |
Length |
5m |
PCB Width |
10mm |

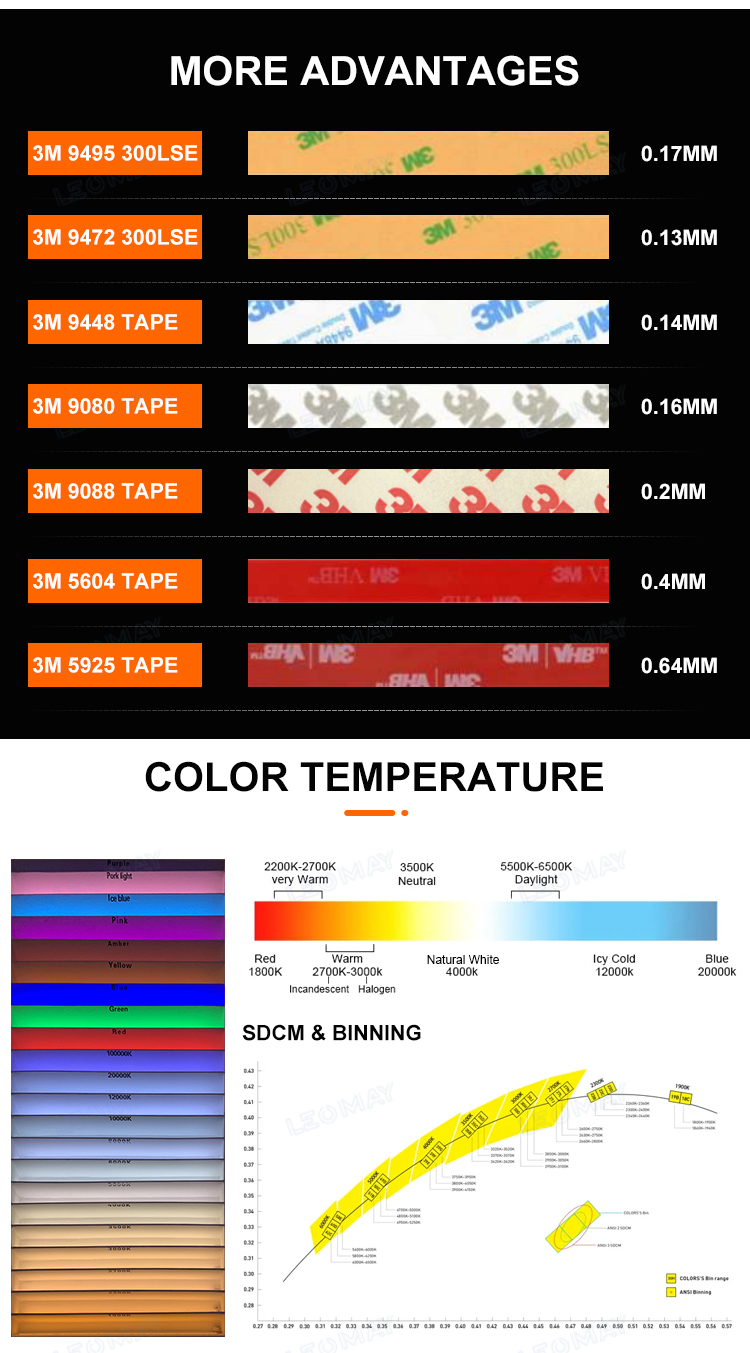

Adhesive Type |
3M 9495LE |
Operating Temperature |
-10°C ~ +45°C |
FAQ:
Q1:What are the advantages of Lightwolf and its items?
A: - We are manufacturer. And we have experienced sales team providing professional service.
- We already had UL, CE, RoHS, FCC certificates.
- We have a 3000m² factory.
Q2: How do you ship the goods and how long does it take to arrive?
A:We usually ship by UPS. It usually takes 3-7 days to arrive. Airline and sea shipping is also optional. Usually, we had
material in stock, regular order lead time is 2-7 days after the order is paid. Custom products 8--15 days.
Q3:How can I place an order?
A:You can place orders online directly or choose to underline paid, I will make the PI to you. It’s up to you, both of them
are very convenient.
Q4:Can I have a sample order?
A: Yes,we welcome sample order to test and check quality.Mixed sample are also available.
Q5: What is the MOQ?
A:For regular one we have in stock,there is no MOQ;For special one,please contact our sales.
Q6:What is the life span and the warranty for our strips?
A:Our strips are with 50000 hours long life span and 3 years warranty.
Q7:What is the main market for Lightwolf?
A: We are selling more to EU, Australia and north America because the markets have high quality standard for LED products.
The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are
also optimistic about the markets for other American and Asian regions.

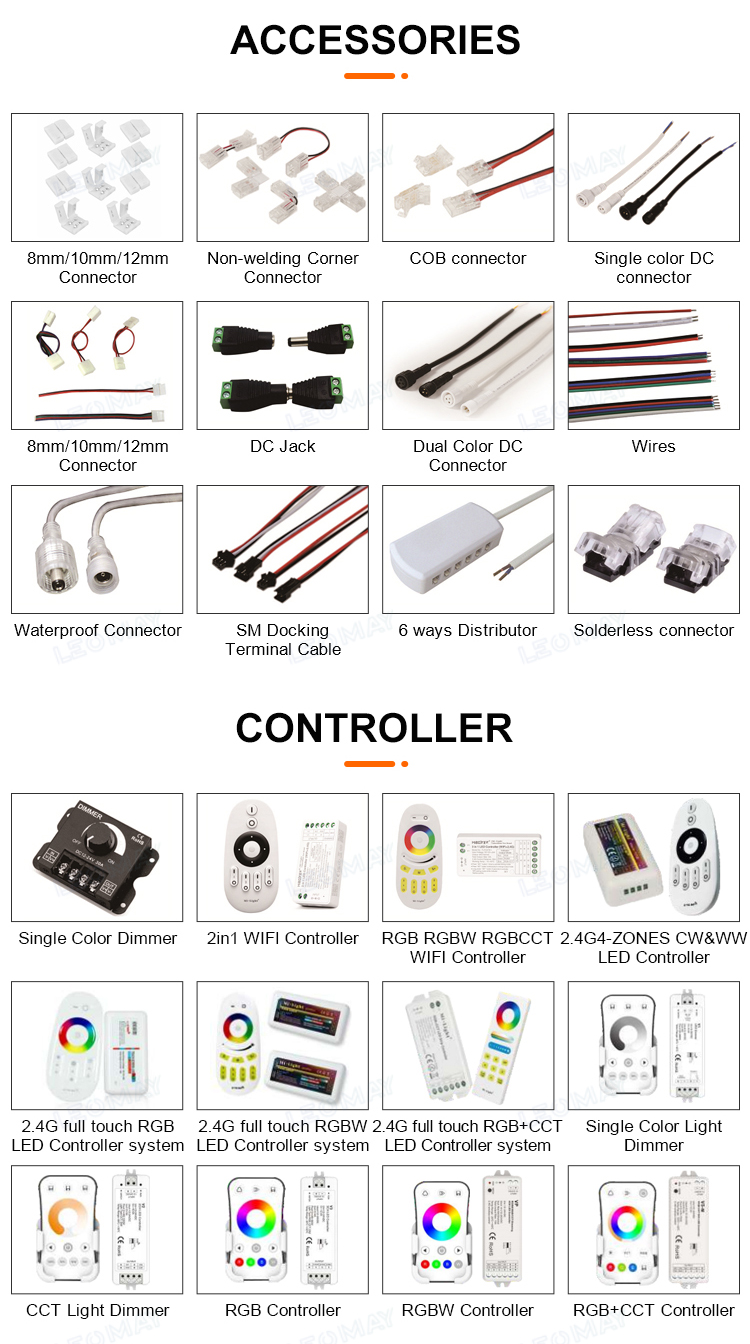

Q8:Do you also provide a complete set of accessories?
A: Yes,we can also provide adapter,dimmer,controller,connector and so on.
