Model NO |
LM2835-WN120-24V-8MM |
LED Type |
SMD2835 |
Voltage(V) |
DC24V |
LED Qty/m |
120LED/M |
PCB Width |
8MM |
Rated Power(W) |
9.6W/M |
Luminous Flux |
Ra80:2700K(588LM/M), 3000K(950LM/M), 4000K(1008LM/M), 6000K(1037LM/M) |
Cutting Unit |
50MM (6LEDs/cutting) |
IP Rate |
IP20/IP54/IP65 |
LED Chip Brand |
SANAN, EPISTAR, LUMILEDS, SAMSUNG |
LEDs Material |
Double high thick 99.99% Gold Wire, Copper holder |
LEDs Supplier |
HONGLITRONIC, LUMILEDS, SAMSUNG |
CRI(RA>) |
80+, 90+ |
Color Tempertature |
2200K~7000K |
Package(m/roll) |
5M, 10M, 25M, 50M |
Certificate |
UL, CE, FCC, ROHS, UKCA , CB, ISO9001 |
Warranty |
3~5 Years |

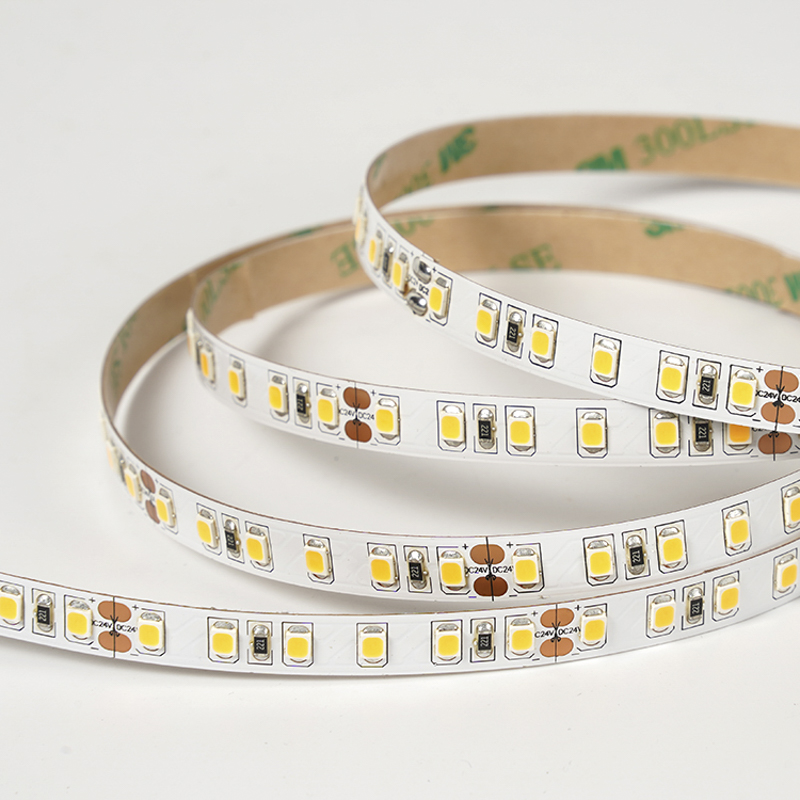

Product Name |
Flex LED strip |
Item Number |
LM2835-WN120-24V-8MM |
Power |
9.6W/M |
Voltage |
24V |
LED Quantity |
600 chips(120 chip/m) |
Cutting Unit |
6 chips (every 5cm) |
Length |
5m |
PCB Width |
8mm |
Adhesive Type |
3M 9495LE |
Operating Temperature |
-10°C ~ +45°C |
