Model NO |
LM2835-WN120-12V-8MM |

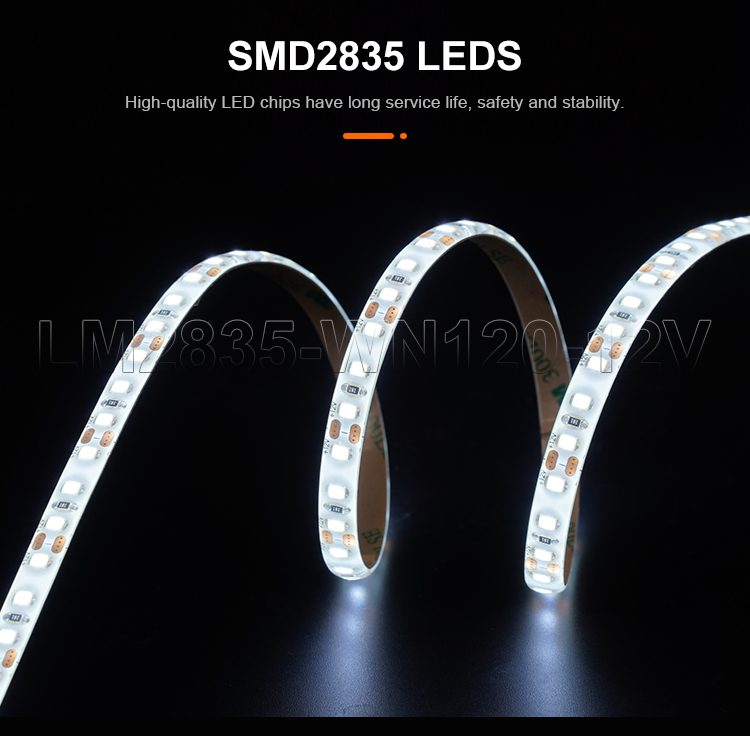

LED Type |
SMD2835 |
Voltage(V) |
DC12V |
LED Qty/m |
120LED/M |
PCB Width |
8MM |
Rated Power(W) |
9.6W/M |
Wavelength/CCT |
Ra80:2700K(940LM/M),3000K(950LM/M), 4000K(1008LM/M), 6000K(1037LM/M) |

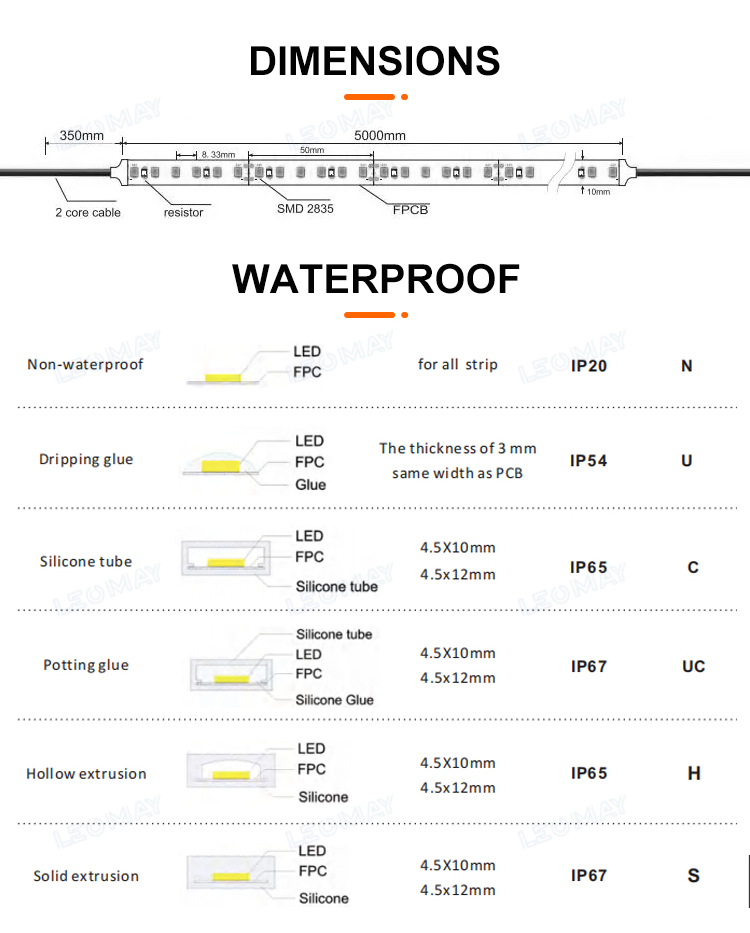

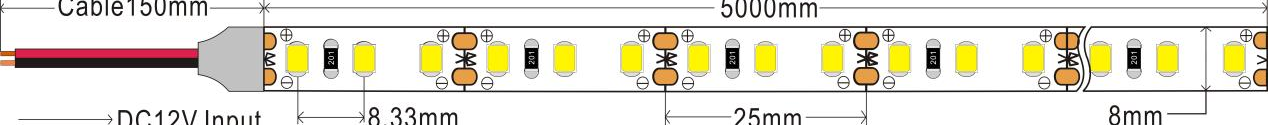

Cutting Unit |
25MM (3LEDs/cutting) |
IP Rate |
IP20/IP54/IP65/IP67/IP68 |

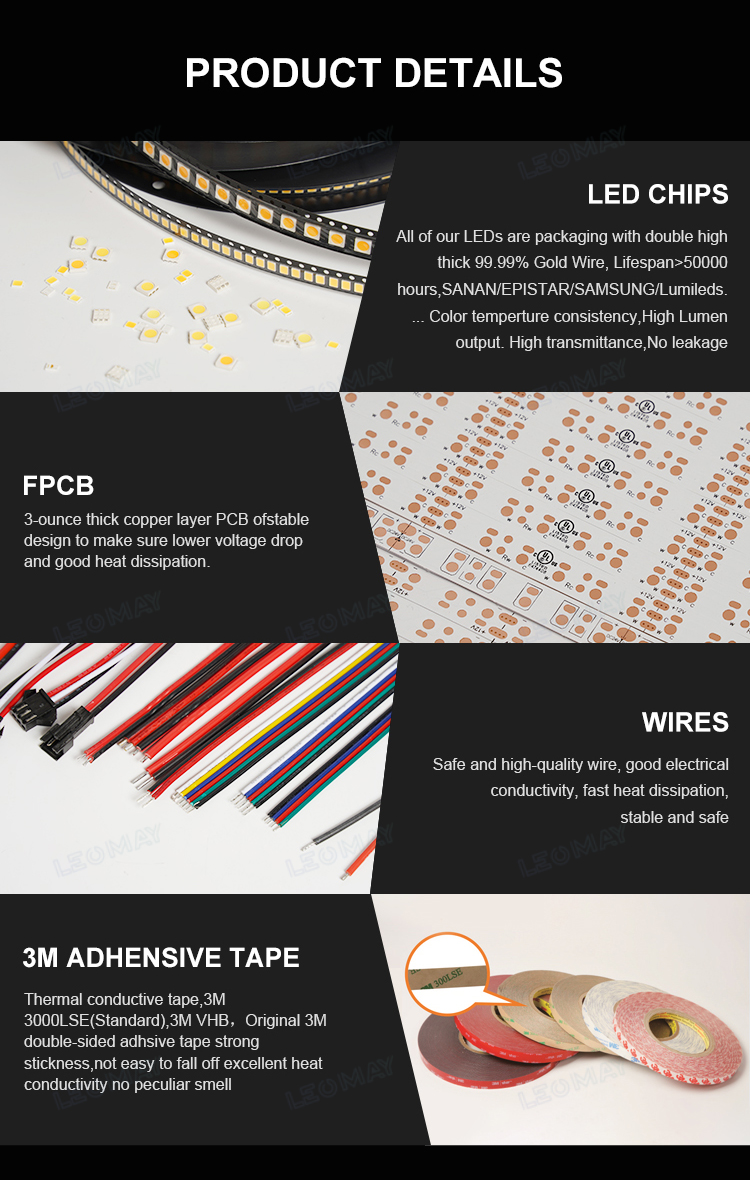

LED Chip Brand |
SANAN, EPISTAR, LUMILEDS, SAMSUNG, OSRAM |

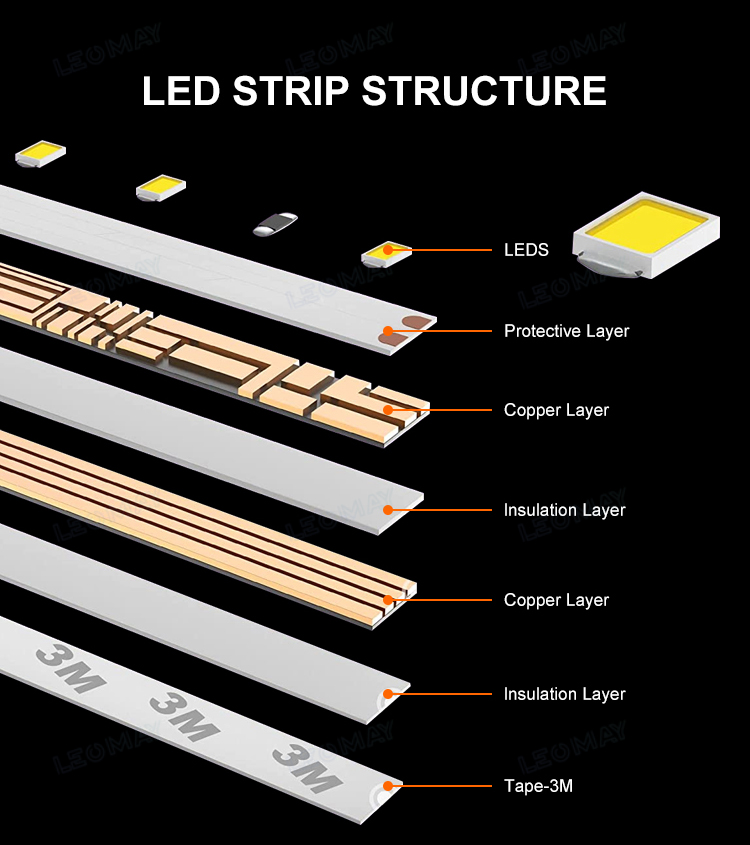

LEDs Material |
Double high thick 99.99% Gold Wire, Copper holder |
LEDs Supplier |
HONGLITRONIC, LUMILEDS, SAMSUNG, ORSAM |
CRI(RA>) |
80+, 90+,95+,98 |
Color Temperature |
2200K~7000K, Red, Blue, Green, Yellow, Pink, Orange |
Package(m/roll) |
5M, 10M, 25M, 50M |
Certificate |
UL, CE, FCC, ROHS, UKCA , CB, ISO9001 |
Warranty |
3~5 Years |

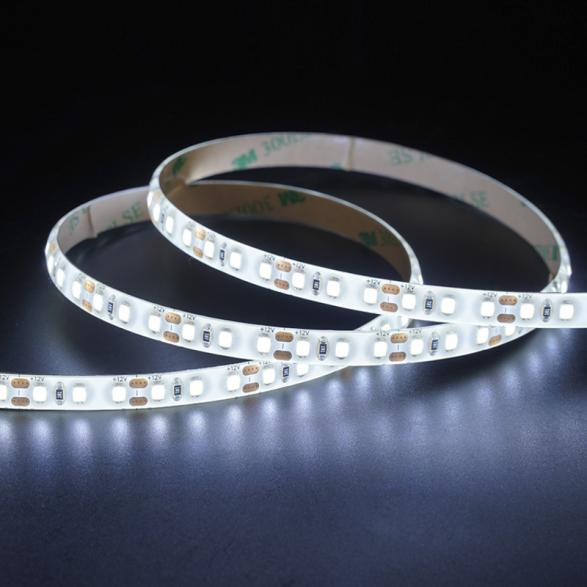

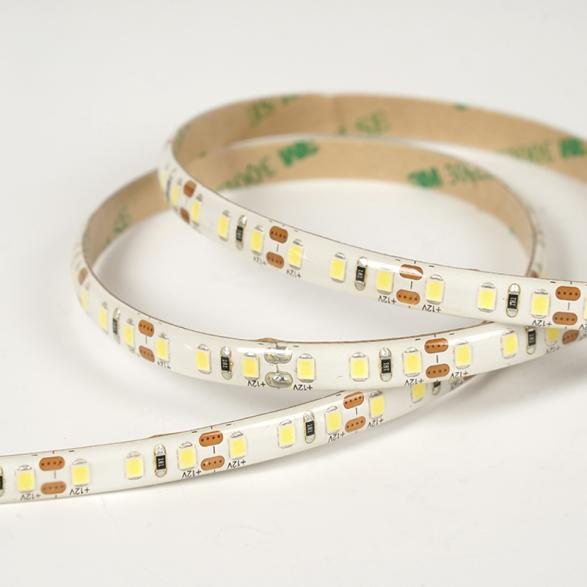

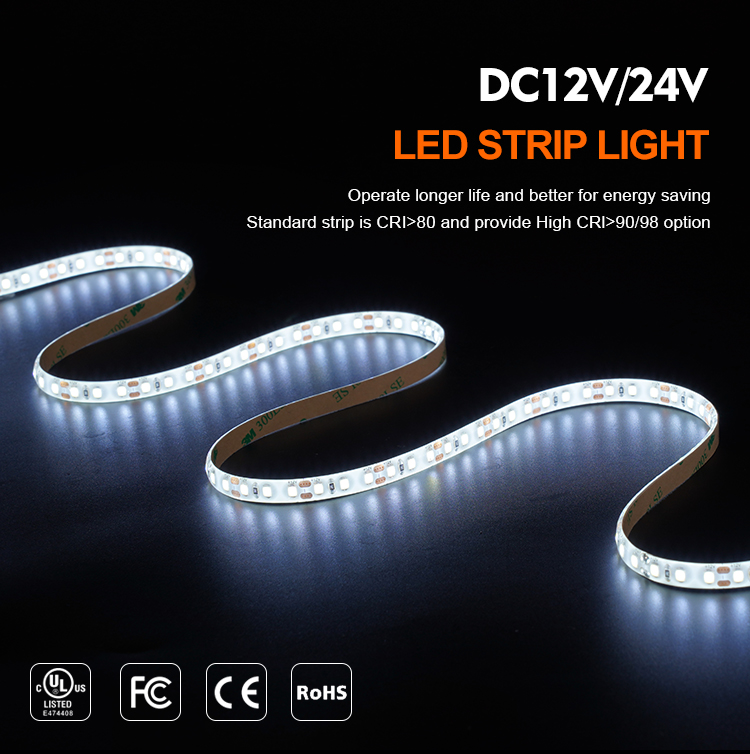

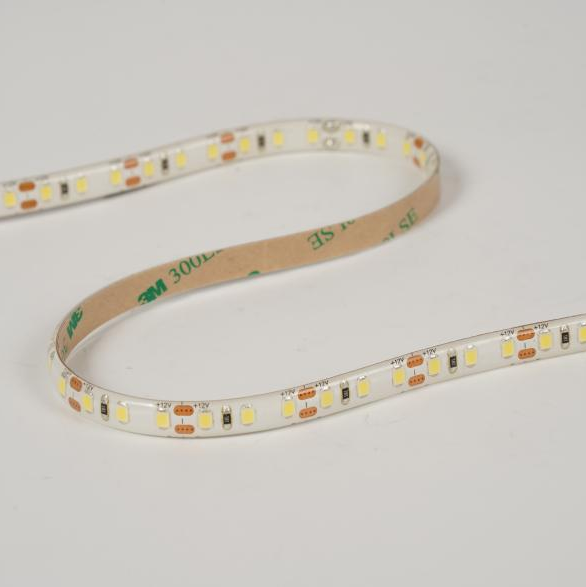

Product name |
Flex LED strip |
Item Number |
LM2835-WN120-12V-8MM |
Power |
9.6W/M |
Voltage |
12V |
LED quantity |
600（120 chip/m) |
Cutting unit |
3 chips(every 2.5cm) |

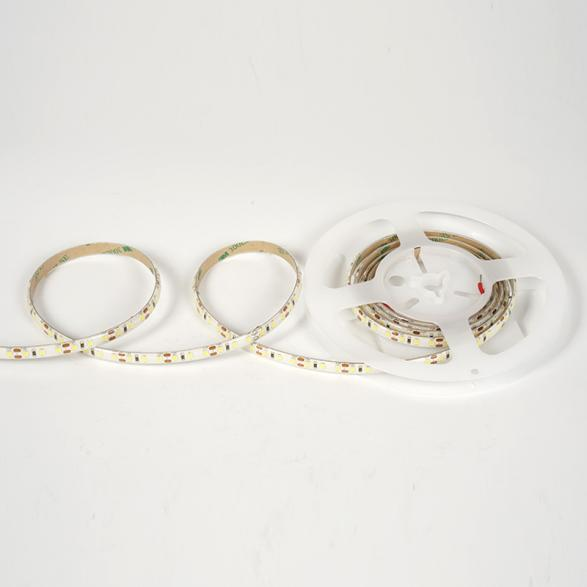

Length |
5m |
PCB width |
8mm |

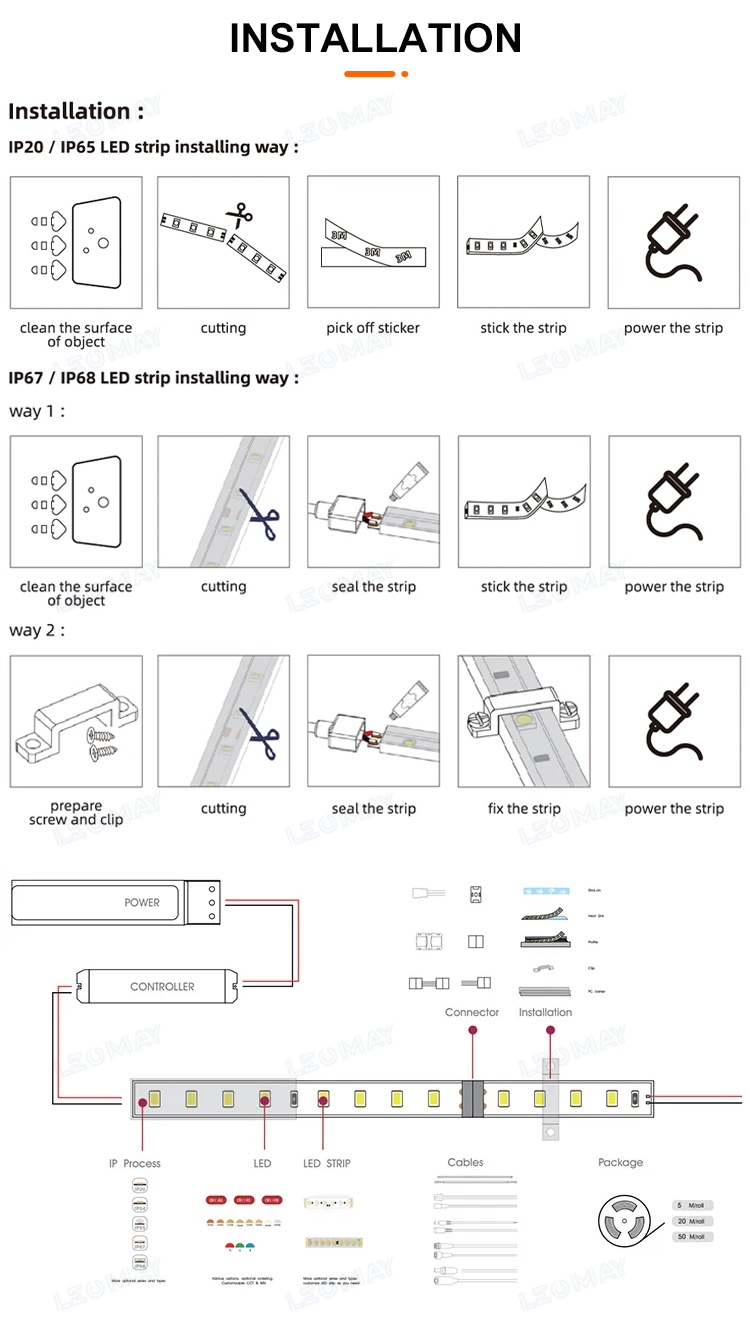

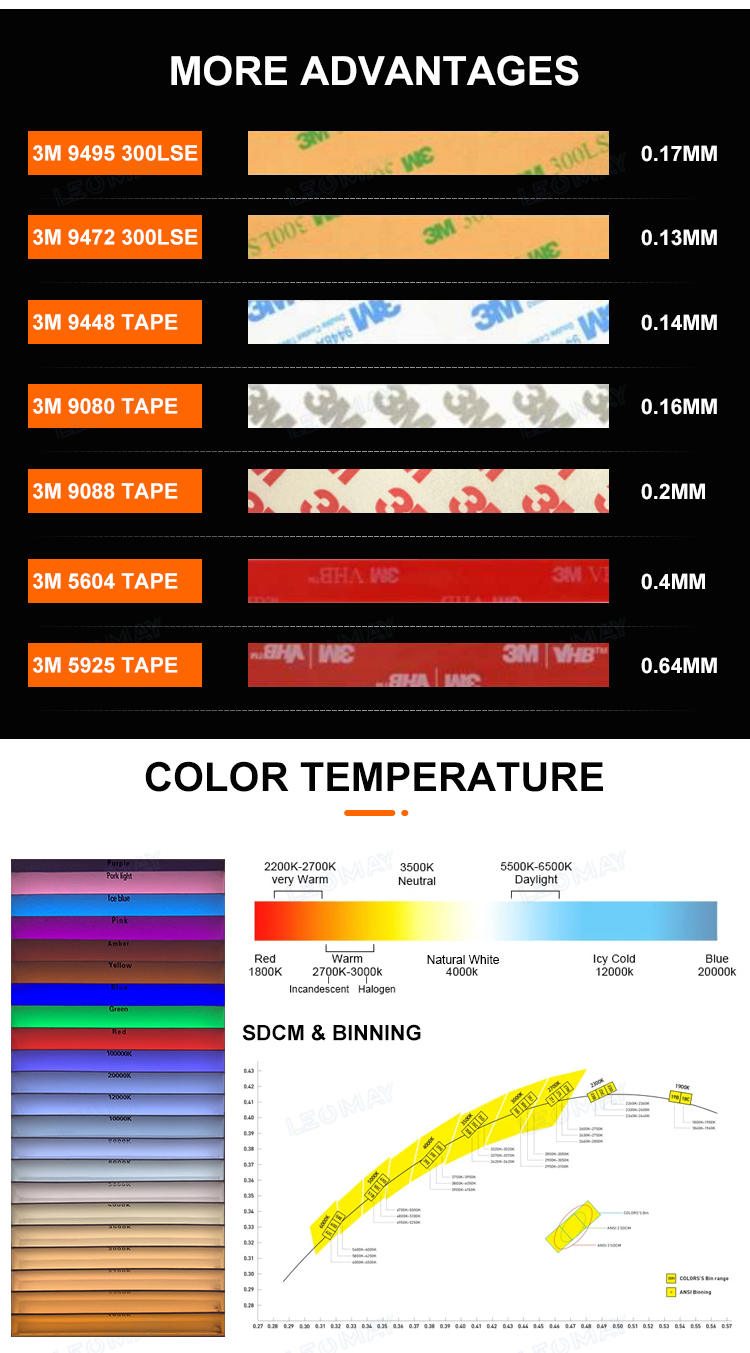

Adhesive type |
3M 9495LE |
Operating temperature |
-10°C ~ +45°C |
FAQ:
Q1:Are you a manufacturer or trading company?
A: We are manufacturer. And we have experienced sales team providing professional service.
Q2:Can l have a sample order for led strip?
A:Yes,5 meter sample is welcome. Mixed color are acceptable.

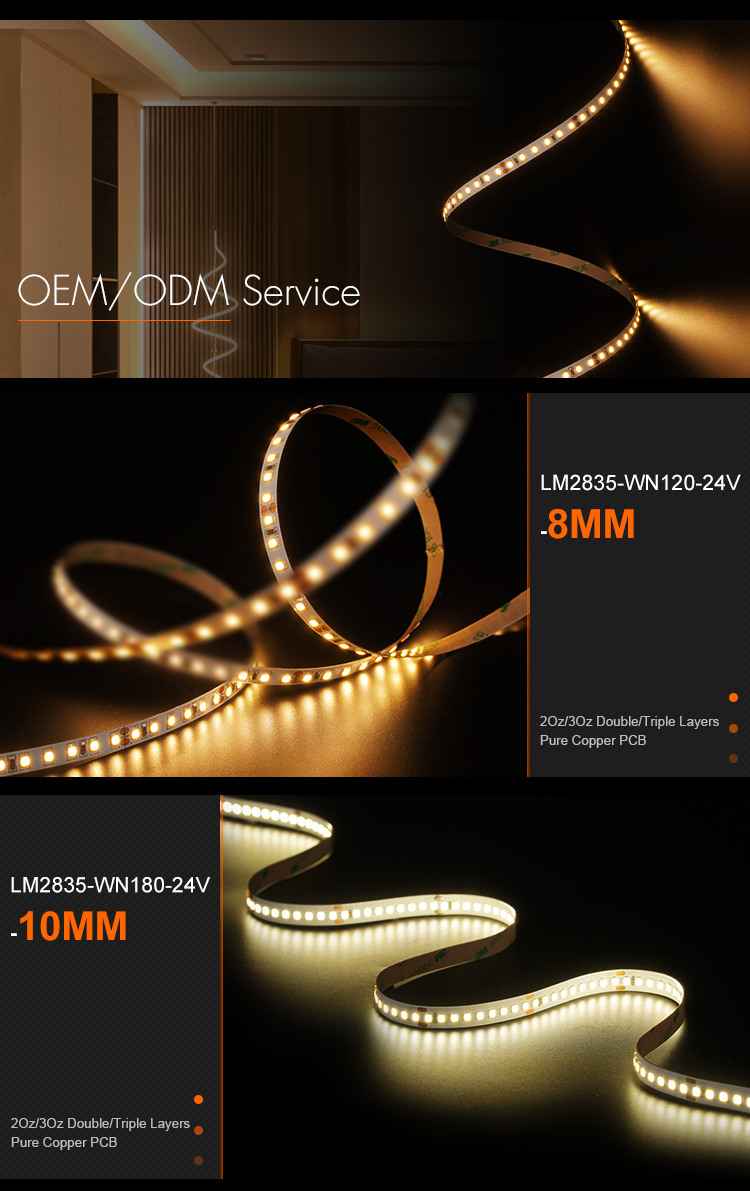

Q3:Do you provideOEM/ODM services?
A:Yes.We have factories with specialized R&D teams focusing on design, engineering, electronics, optics and processing, etc.

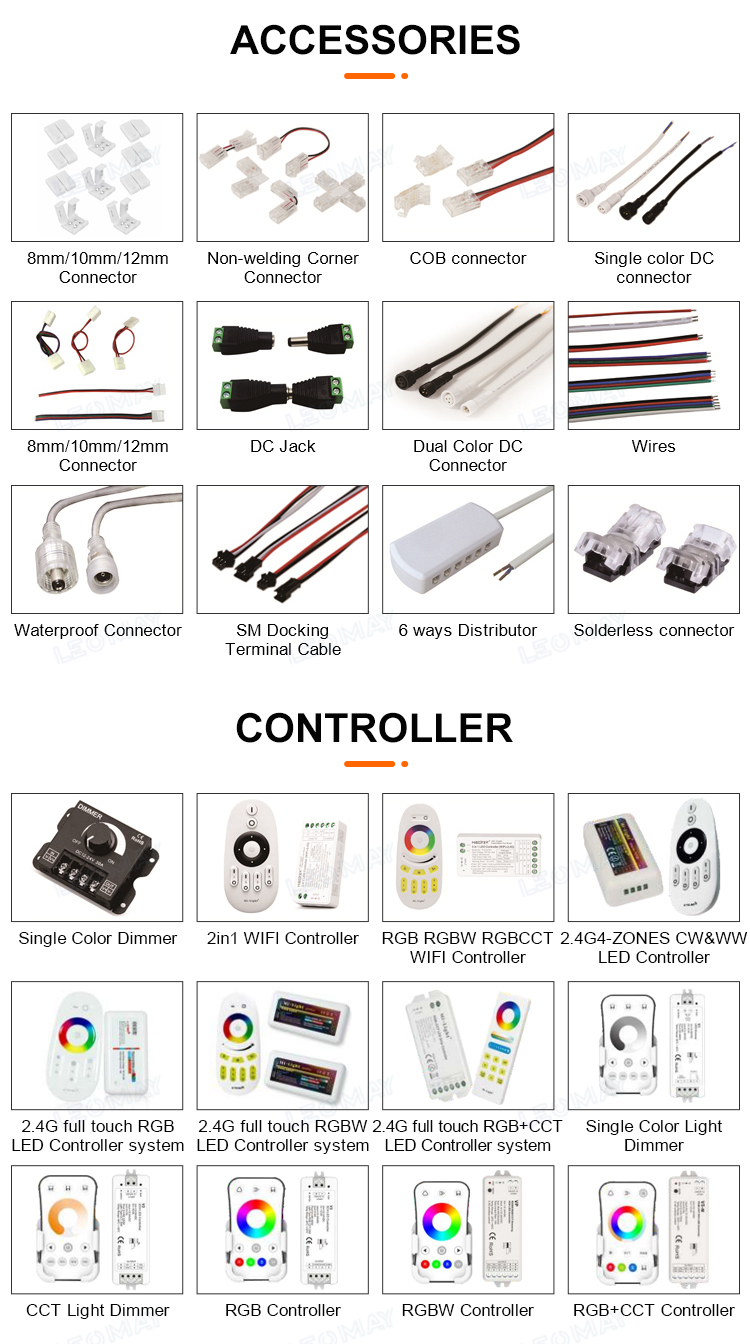

Q4:Can I also buy LED sensor switch from you?
A: Yes.In order to meet the demands of customers one-stop purchasing, we also provide related accessories, such as LED aluminum profiles, led controllers, power supplies and connectors, etc.
Q5: How to deal with the faulty?
A:The defective rate is really very lower under our strict qualitycontrol system. If any happened, we will replace it with you on next new order or negociate a solution.
Q6:What are the advantages of Lightwolf and its' items?
A:Lightwolf is a manufacturers that focus on Led strips aluminum profile neon light.
We already had CE, RoHS UL FCC etc certificates.
We have a 3000m² factory.
Q7:What is the main market for Lightwolf?
A: We are selling more to EU, Australia and north America because the markets have high quality standard for LED products.
The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are
also optimistic about the markets for other American and Asian regions.
Q8:Does Lightwolf design its products?
A: Yes, Lightwolf designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics,
electronics, mechanical and thermal management, as well as light control technology. Some of them have successful
experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.
